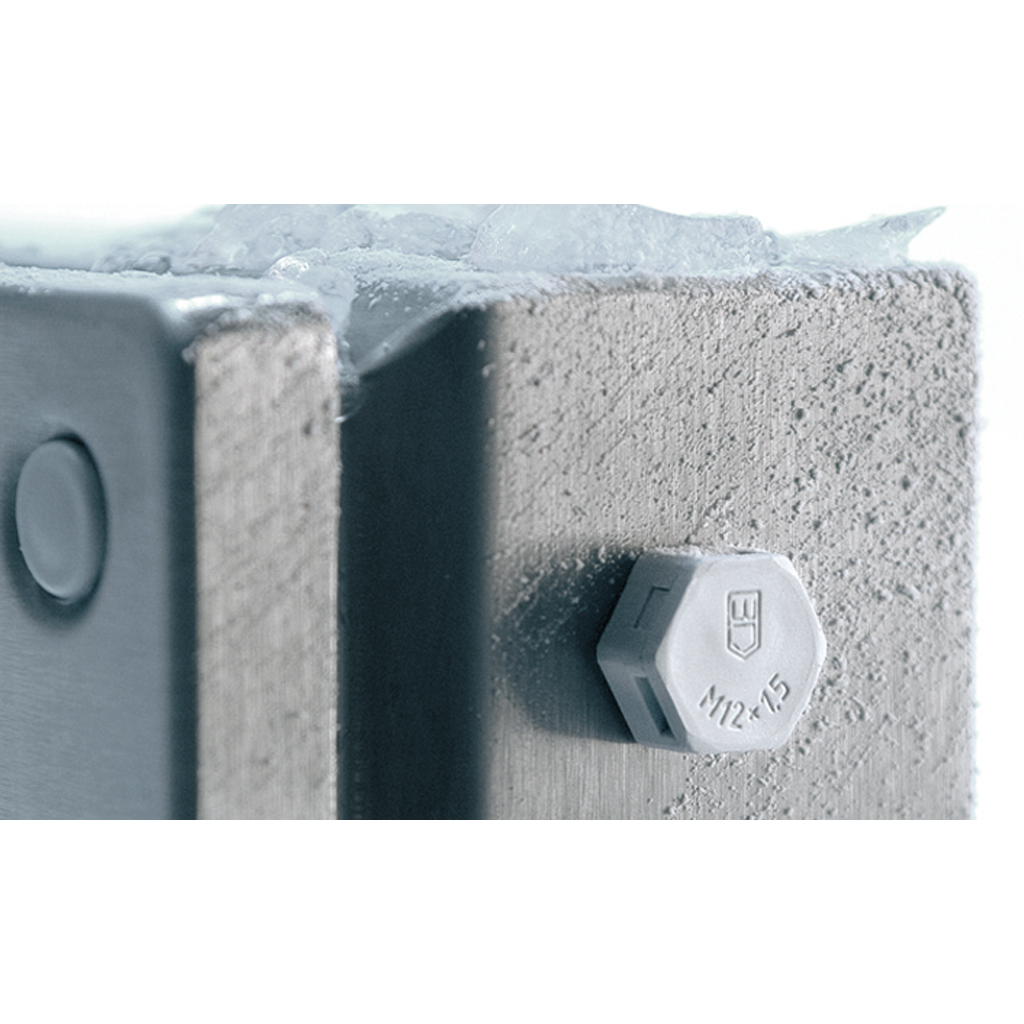

Venting Element Metric Thread

Code	JCT12
Material body	PA6 (Polyamide)
Material diaphragm	PES (Polyethersulfone)
Protection grade	IP66; IP68 - 0,6 bar (60 min); IP69
Self-extinguishing	UL 94 V-0
Air passage	> 400 ml / min / cm2 a ∆p = 0,07 bar
Water passage	≥ 0,83 bar (30 sec)
Operating temperature	-40°C ÷ 100°C
Use	Protection for cases or electric/electrotecnic boxes, against condensation water, due temperature and pressure varations
Notes	Ventilation and continous adaptation to Internal pressure. The venting element doesn't work if blocked by dust or submerged in water.

Would you like to become our customer?

Description

Life Cycle

Ventilation and continous adaptation to Internal pressure. The venting element doesn't work if blocked by dust or submerged in water.

Protection for cases or electric/electrotecnic boxes, against condensation water, due temperature and pressure varations

Active
